Transport ventilator ADAMIK VAN 828 3 kW

1.563  excluding VAT
1.891,23  with VAT

2 in stock

Inquiry to the seller

Inquiry to the seller

    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    SKU: VAN828_3kW Categories: ,
    Description

    The ADAMIK VAN 828 transport ventilator with a power of 3 kW is intended primarily for central extraction of smaller workshops with connection to a filtration unit (cyclone, filtration unit) or for transport without filtration (silo, container).

    With the new fan design, we have achieved an excellent ratio between extraction capacity and underpressure while using a low-energy motor and maintaining a low noise level.

    Underpressure is necessary for high-quality extraction of material from machines located at a distance of more than 10 m from the fan itself. However, this parameter is often underestimated.





    Additional information
    Type

    VAN 828

    Power

    3 kW

    Voltage

    400 V / 50 Hz

    Extraction capacity (max)

    6,820 m3/h

    Underpressure (max)

    3,000 Pa

    Connection to hose

    280 mm

    Output dimension

    280 x 220 mm

    Noise level

    76 dB

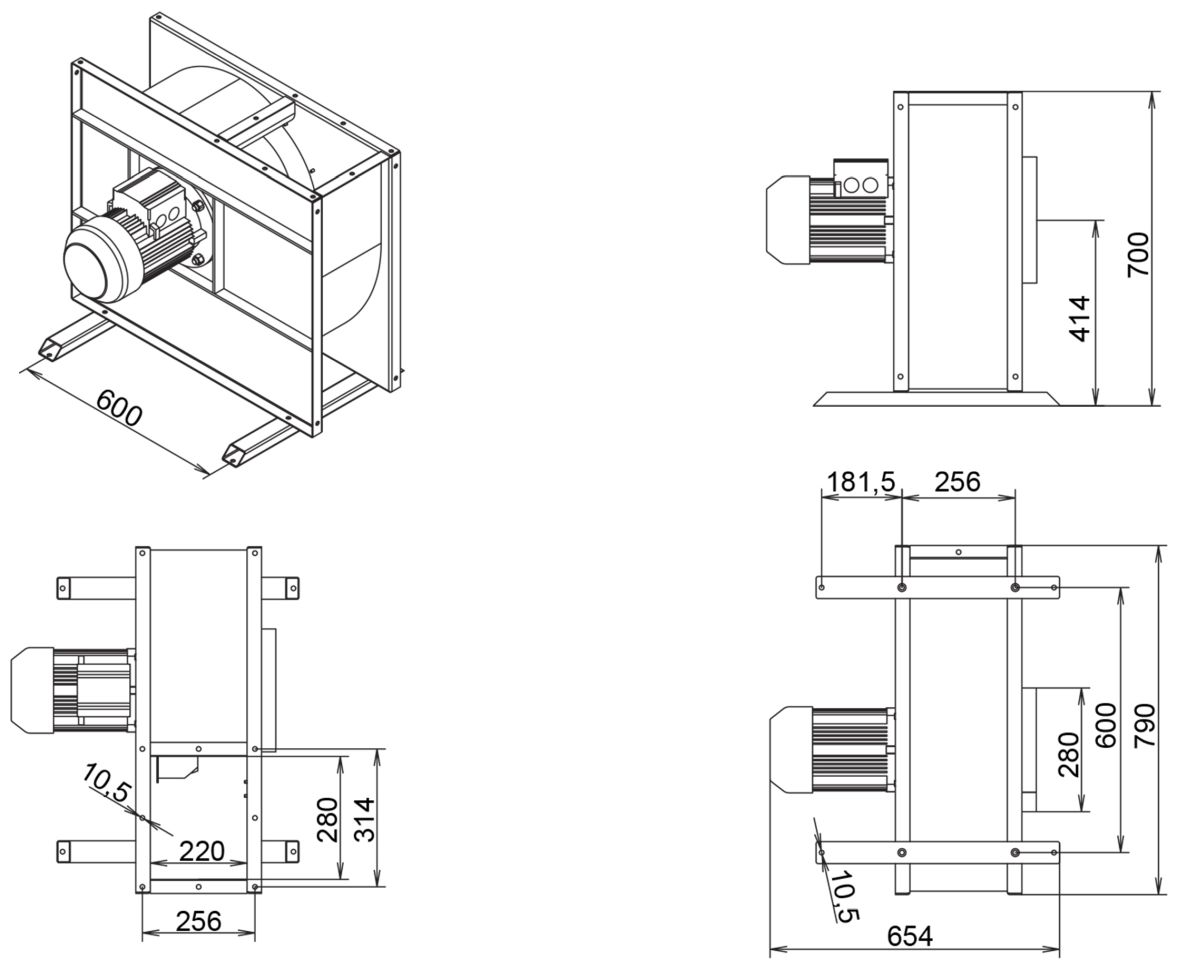

    Length

    790 mm

    Width

    654 mm

    Height

    700 mm

    Weight

    85 kg
