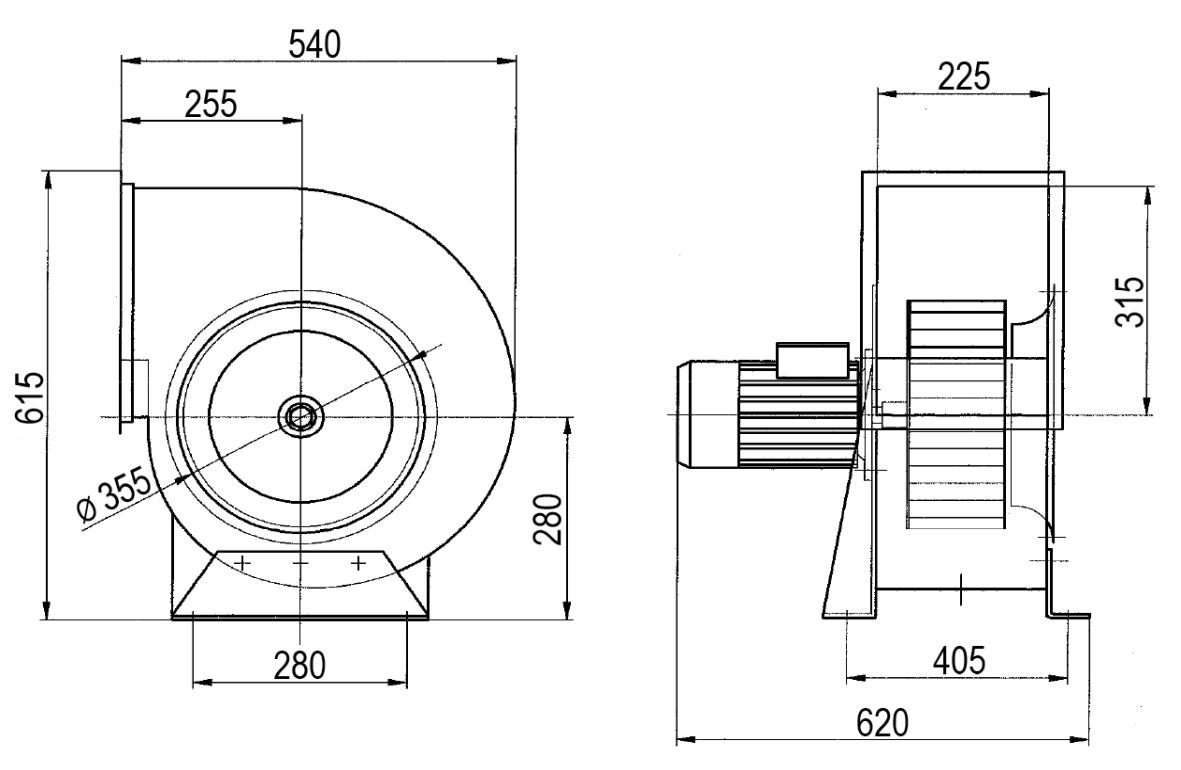

Ventilator ADAMIK VAN 535 dimensions side
Ventilator ADAMIK VAN 535 dimensions upward
Click to enlarge
Ventilator ADAMIK VAN 535
Ventilator ADAMIK VAN 535 dimensions side
Ventilator ADAMIK VAN 535 dimensions upward

Ventilator for spraying booths ADAMIK VAN 535 2.2 kW

1.743 € excluding VAT
2.109,03 € with VAT

Availability: On order

Inquiry to the seller

Inquiry to the seller

    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    Add to compare
    Add to wishlist
    SKU: VAN535 Categories: ,
    Description

    The ADAMIK VAN 535 ventilator with a power of 2.2 kW is a radial low-pressure, single-sided extraction fan with a direct motor. It is intended for environments without the risk of explosion. The fans are driven by electric motors, where the impeller is loosely mounted on the electric motor shaft. The SIEMENS electric motor operates in a horizontal shaft position. The electric motor is in the basic IP55 design. The fan housing is made of galvanized sheet metal, the electric motor holder is made of black sheet metal and a class 11 profile with an anti-corrosion surface treatment. The impeller is galvanized and the inlet is aluminum.
    The fans are designed to transport air without mechanical impurities that would settle on the fan impeller in the temperature range of -20 °C to +80 °C.
    The most common use of this fan is for the extraction of spraying booths with a requirement for extraction up to 8,300 m3/h.





    Additional information
    Type

    VAN 535
    Power

    2.2 kW
    Voltage

    400 V / 50 Hz
    Extraction capacity (max)

    8,280 m3/h
    Underpressure (max)

    880 Pa
    Connection to hose

    355 mm
    Output dimension

    315 x 225 mm
    Length

    540 mm (side output) / 560 mm (upward output
    Width

    620 mm
    Height

    615 mm (side output) / 580 mm (upward output)
    Weight

    61 kg
