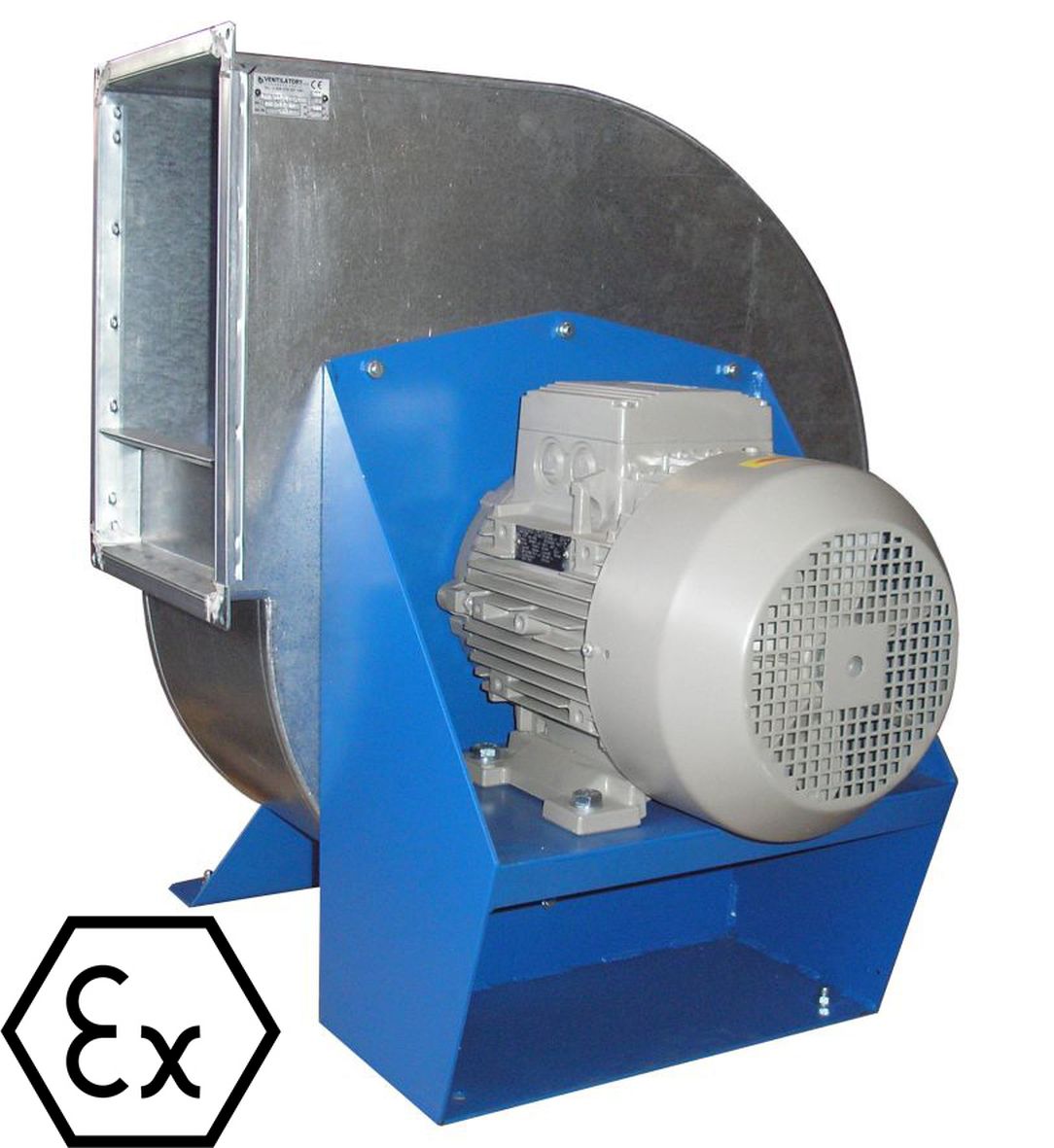

Ventilator for spraying booths ADAMIK VAN 531 Ex 1.5 kW

The ADAMIK VAN 531 Ex fan with a power of 1.5 kW is a radial low-pressure, single-sided intake fan with a direct motor. It is intended for explosion-hazardous environments, zone 2. The fans are driven by electric motors, where the impeller is loosely mounted on the electric motor shaft. The SIEMENS electric motor operates in a horizontal shaft position. The electric motor is in the basic IP55 design.
The fan housing is made of galvanized sheet metal, the electric motor holder is made of black sheet metal and a class 11 profile with an anti-corrosion surface treatment. The impeller is galvanized and the inlet is aluminum.
The fans are designed to transport air without mechanical impurities that would settle on the fan impeller in the temperature range of -20 °C to +80 °C.
The most common use of this fan is for the extraction of spraying booths with a requirement for extraction up to 6,500 m3/h.
