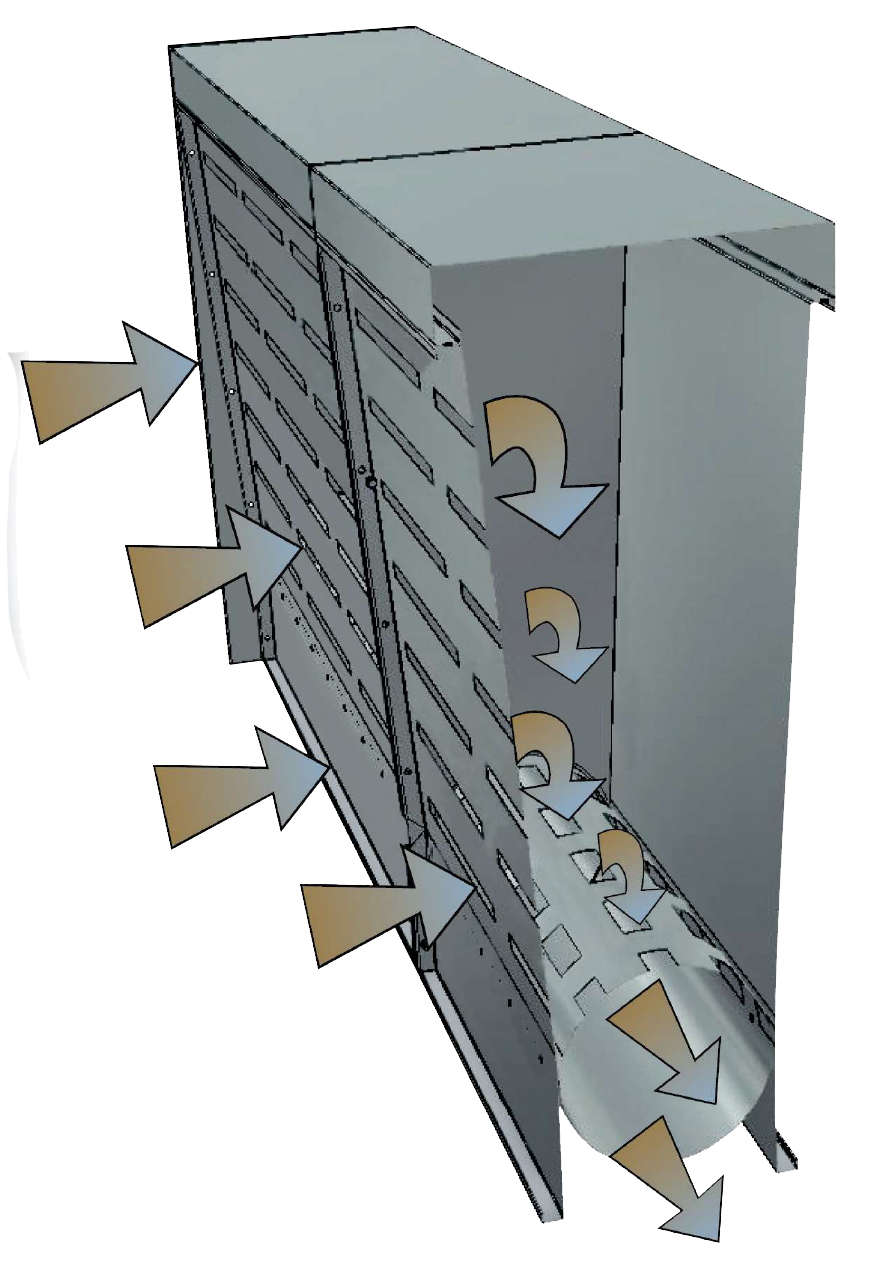

ZINCOWALL function

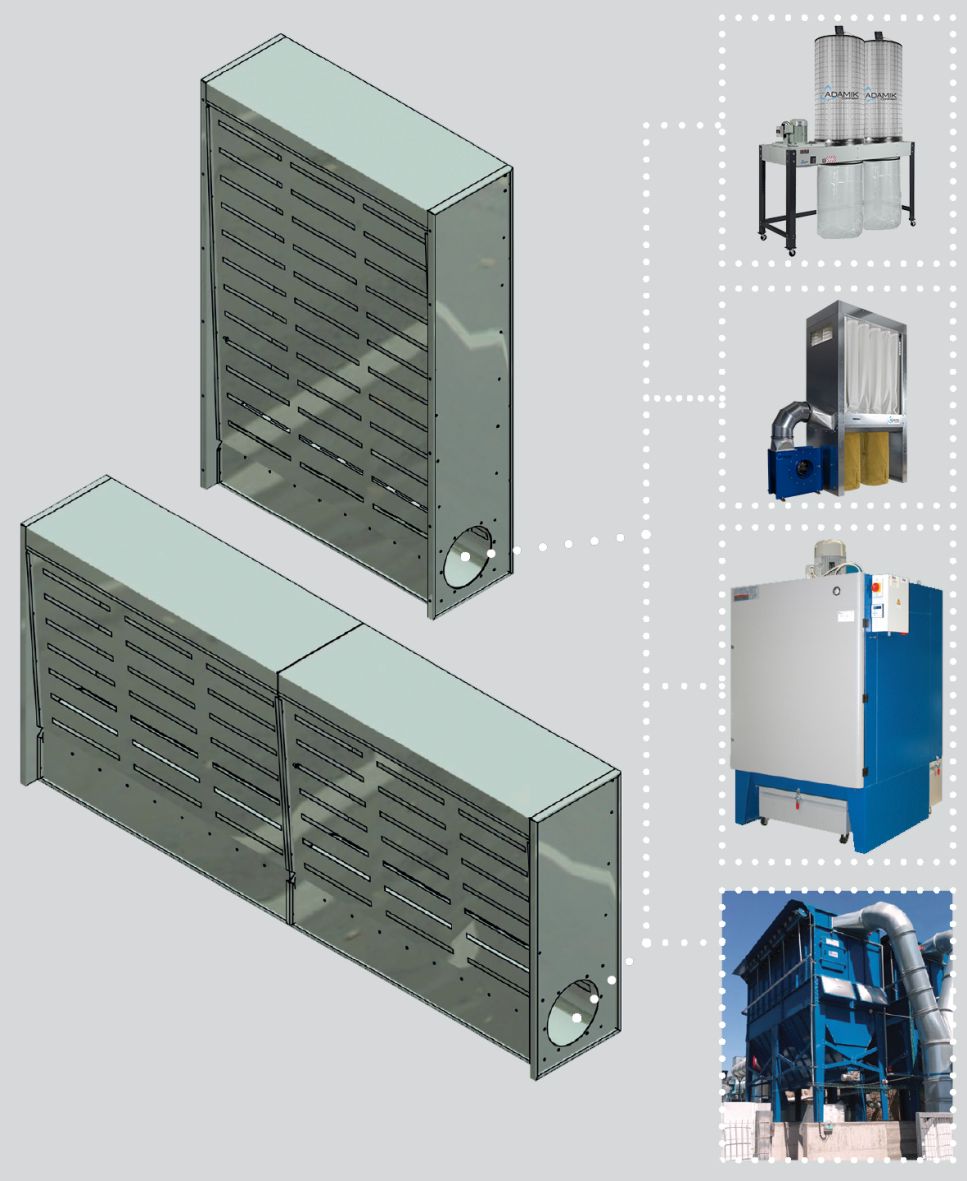

ZINCOWALL use
Click to enlarge
ZINCOWALL
ZINCOWALL 2200_1500
ZINCOWALL function
ZINCOWALL use

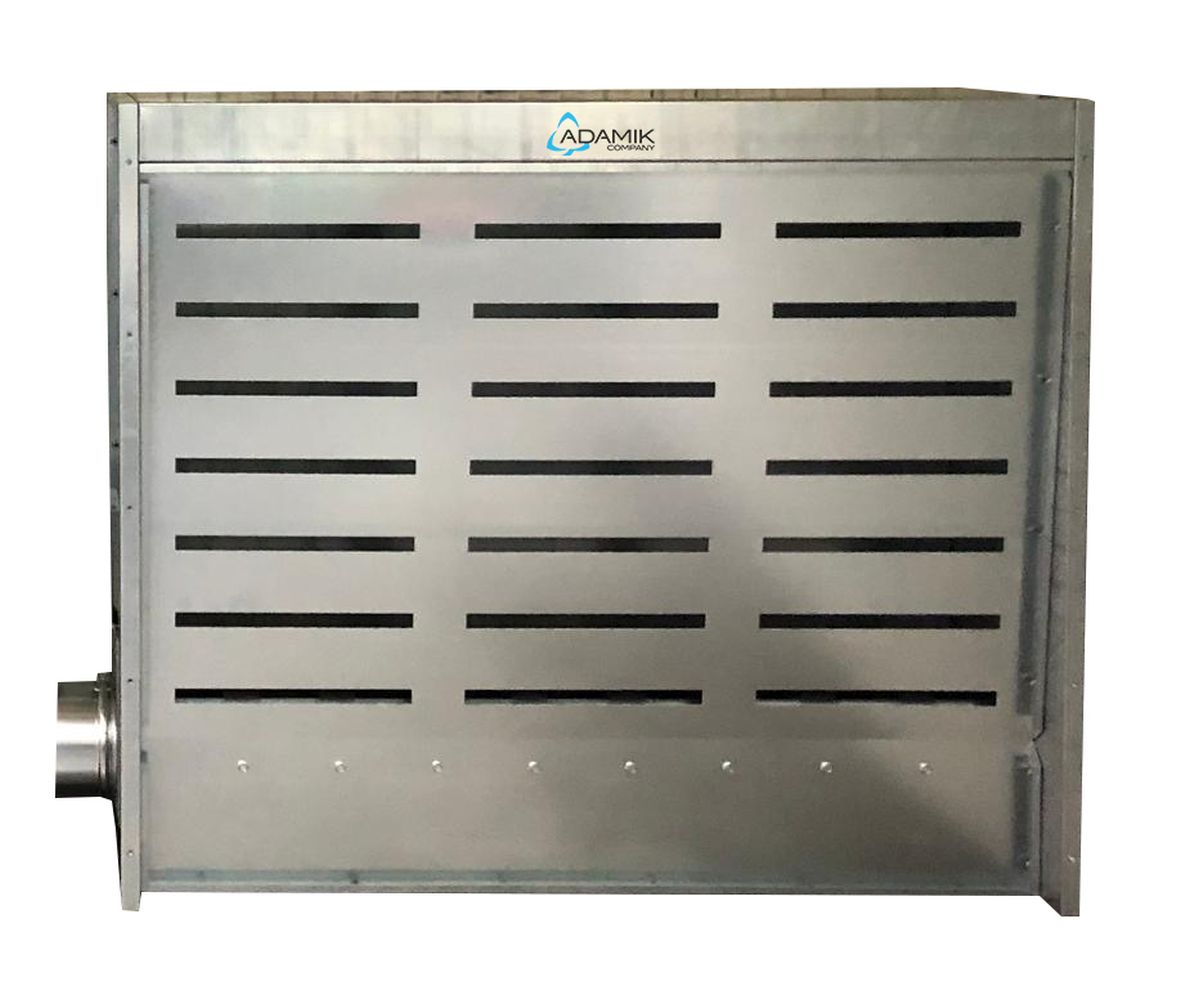

Extraction wall ZINCOWALL 2200, length 1 500 mm

Availability: On order

Request a non-binding quote

Request a non-binding quote




    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    Add to compare
    Add to wishlist
    SKU: ZW2200/1500 Categories: ,
    Description

    The ZINCOWALL 2200 modular extraction wall is designed for the extraction of dry smoke, fumes and dust. The wall is not equipped with a fan and can be connected to a central extraction and filtration system with properly dimensioned piping.

    • A solution suitable where high extraction capacity is required
    • Customised variants: a version for higher extraction capacity can be designed and manufactured on request
    • Modular: the extraction wall can be adapted to almost any type of centralized system
    Additional information
    Type

    ZINCOWALL 2200/1500
    Designed for...

    welding fumes, fine dust, coarse dust
    Power

    –
    Extraction capacity (max)

    6,000 m3/h
    Extraction area

    1,400 x 1,853 mm
    Filtration area (total)

    –
    Output

    300 mm
    Length

    1,500 mm
    Width

    503 mm
    Height

    2,200 mm
