ADAMIK FT 403 VSF Dust Collector

1.962  excluding VAT
2.374,02  with VAT

More than 5 pcs in stock

Inquiry to the seller

Inquiry to the seller

    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    Description

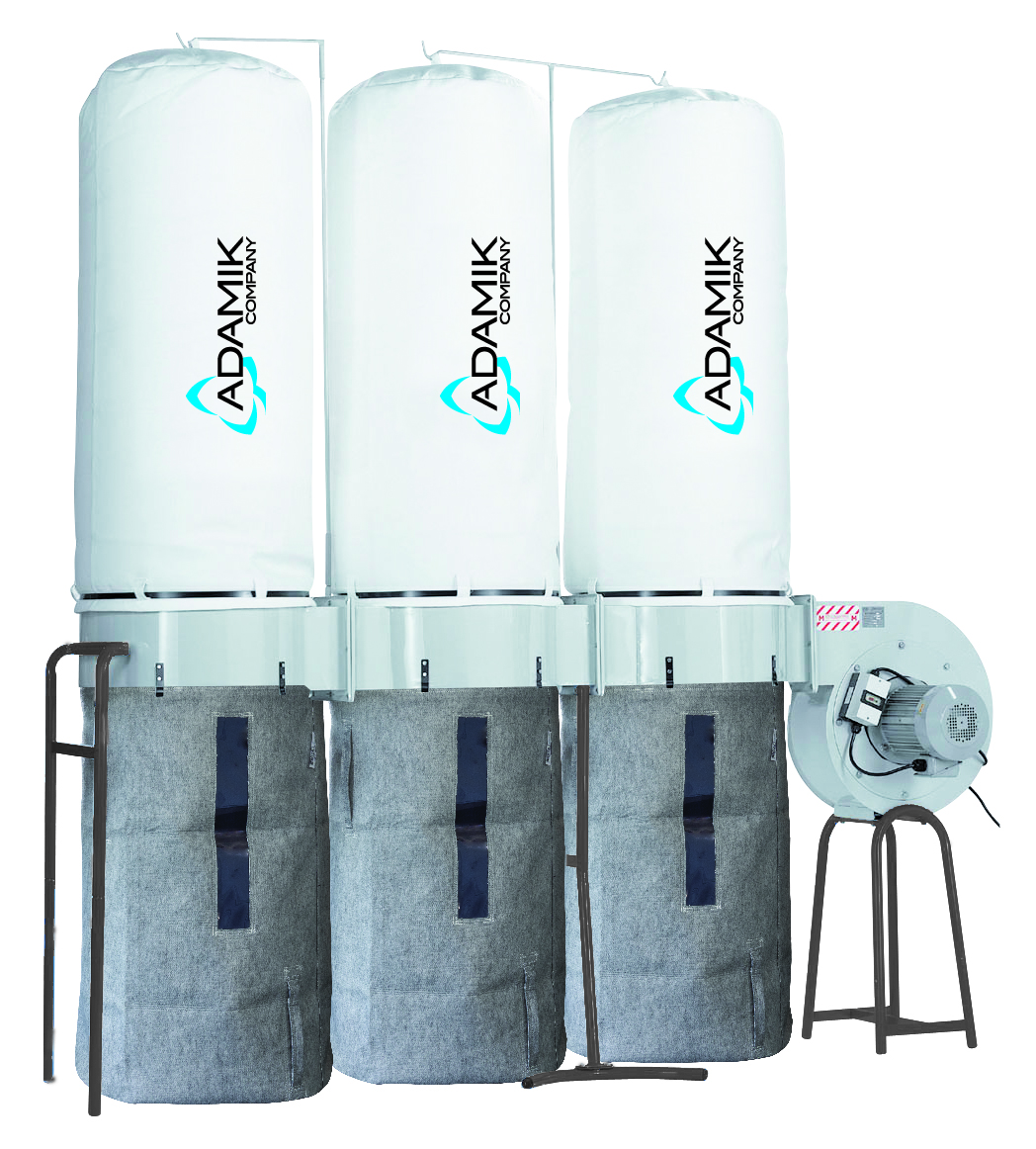

    The ADAMIK FT 403 VSF dust collector has a significant extraction capacity and, thanks to its longitudinal design, is often used for large-area saws, smaller CNC machines or as a small central extraction for two to three machines (for example, a combination of a planer and a broach). Thanks to the large filtration area and the volume of the waste bags, it is suitable for extracting operations with larger amounts of coarse waste.

    • A metal rotor forms the basis of its quality construction.
    • A patented clamp system makes it easy to attach bags.
    • The filter is made of certified material with a filtration efficiency of 99.98% for particles of 3 microns in size.
    • The machine can also be equipped with an external automatic start system.
    • The machine is equipped with textile waste bags with an inspection window and loops for easier handling, which can be used repeatedly.





    Additional information
    Type

    FT 403 VSF

    Power

    2.2 kW

    Voltage

    400 V

    Extraction capacity (max)

    5,800 m3/h

    Underpressure (max)

    2,250 Pa

    Filtration area

    9 m2

    Waste bag volume

    900 l

    Connection to hose

    250 mm

    Circle diameter

    610 mm

    Noise level

    80 dB

    Length

    2,700 mm

    Width

    700 mm

    Height

    2,700 mm

    Weight

    103 kg
