ADAMIK FT 416 VPEAM Dust Collector

2.204  excluding VAT
2.666,84  with VAT

Availability: On order

Inquiry to the seller

Inquiry to the seller

    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    SKU: FT416VPEAM Categories: ,
    Description

    The ADAMIK FT 416 PEA dust collector belongs to a new line of extraction devices that were designed with the aim of maximizing the underpressure. It is equipped with an antistatic polyester filter with cleaning using an electric motor and is intended for the extraction of fine non-explosive dust, for machines processing plasterboard, cement-bonded particle boards and similar building materials.

    It is also excellent for extracting edge banding machines, formatting saws and smaller CNC machines, such as plotters. In summary, this dust collector will find application wherever a smaller dust collector with excellent parameters and a larger filtration area is needed.

    • The dust collector´s design allows you to rotate the suction inlet upwards or downwards, thus optimizing the connection route.
    • The basis of the high-quality solid construction is a metal rotor.
    • Antistatic polyester filters with with cleaning using an electric motor.
    • Textile waste bag with an inspection window and loops for easier handling, which can be used repeatedly.
    • The machine can also be equipped with an external automatic start system.

    The price of the device does not include the PEAM filters control.





    Additional information
    Type

    FT 416 VPEAM

    Power

    1.5 kW

    Voltage

    400 V

    Extraction capacity (max)

    4,200 m3/h

    Underpressure (max)

    2,740 Pa

    Filtration area

    12 m2

    Waste bag volume

    300 l

    Connection to hose

    160 mm

    Circle diameter

    610 mm

    Noise level

    87 dB

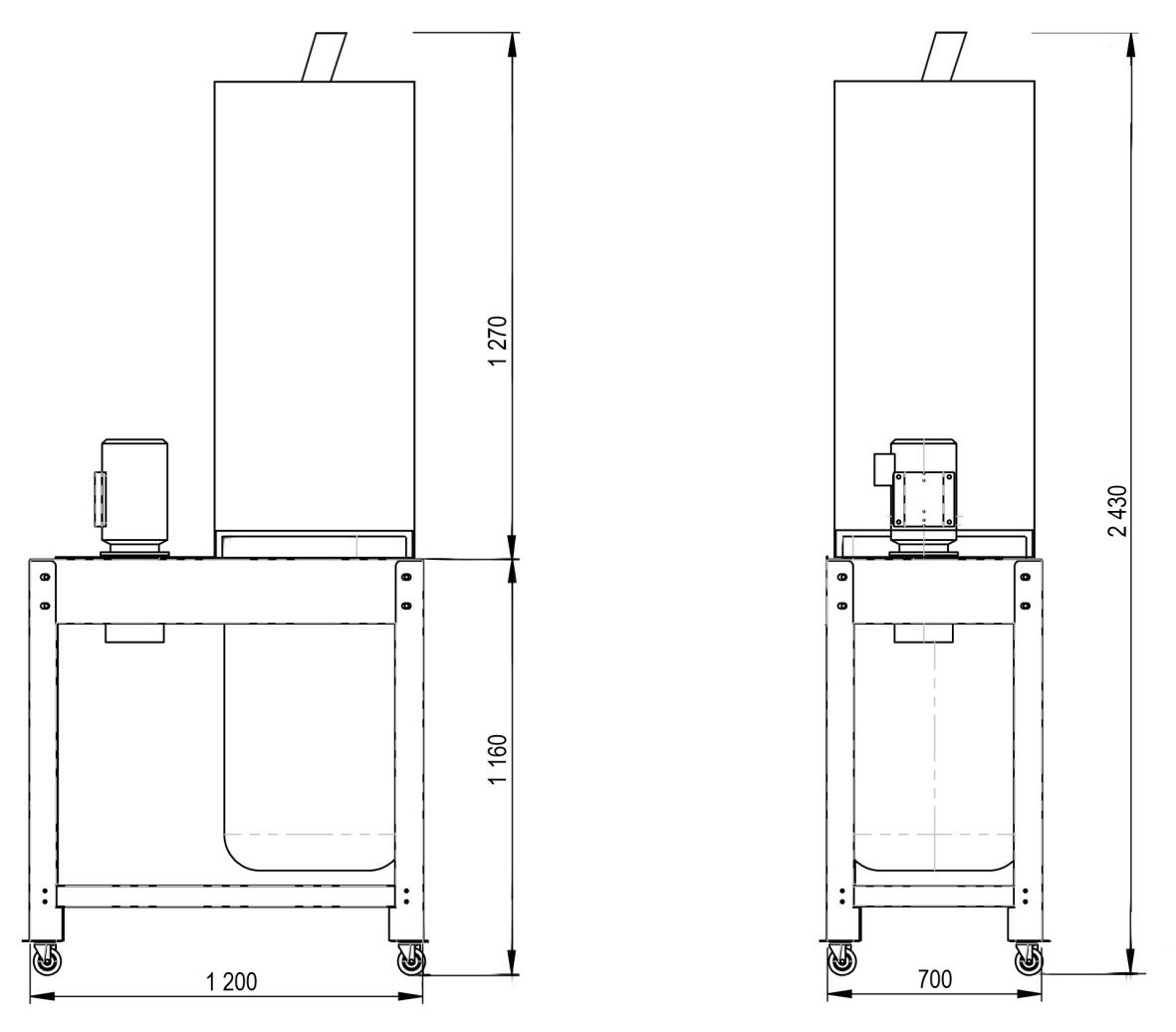

    Length

    1,200 mm

    Width

    700 mm

    Height

    2,430 mm

    Weight

    105 kg
