ADAMIK FT 420 PEAM Dust Collector

2.147  excluding VAT
2.597,87  with VAT

3 in stock

Inquiry to the seller

Inquiry to the seller

    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    Description

    The ADAMIK FT 420 PEAM dust collector belongs to a new series of extraction devices that have been designed with the aim of maximizing underpressure. The FT 420 series has comparable underpressure value to its smaller brother, the FT 416 series, but the FT 420 series has a higher total extraction capacity. Thanks to these features, it is one of the most versatile extraction devices on the market.

    The dust collector is equipped with an antistatic polyester filter with cleaning using an electric motor and is intended for the extraction of fine non-explosive dust, for machines processing plasterboard, cement-bonded particle boards and similar building materials.

    It is also very often used for extracting larger edge banders, formatting saws, smaller CNC machines, such as plotters. In summary, this dust collector can be used wherever a smaller extraction device with excellent parameters and a larger filtration area is needed.

    The price of the machine includes 3 PVC waste bags.

    • The dust collector´s design allows you to rotate the suction inlet upwards or downwards, thus optimizing the connection route.
    • The basis of the high-quality solid construction is a metal rotor.
    • Antistatic polyester filters with with cleaning using an electric motor.
    • The machine can also be equipped with an external automatic start system.

    The price of the device does not include the PEAM filters control.





    Additional information
    Type

    FT 420 PEAM

    Power

    2.2 kW

    Voltage

    400 V

    Extraction capacity (max)

    5,940 m3/h

    Underpressure (max)

    2,490 Pa

    Filtration area

    12 m2

    Waste bag volume

    300 l

    Connection to hose

    200 mm

    Circle diameter

    610 mm

    Noise level

    84 dB

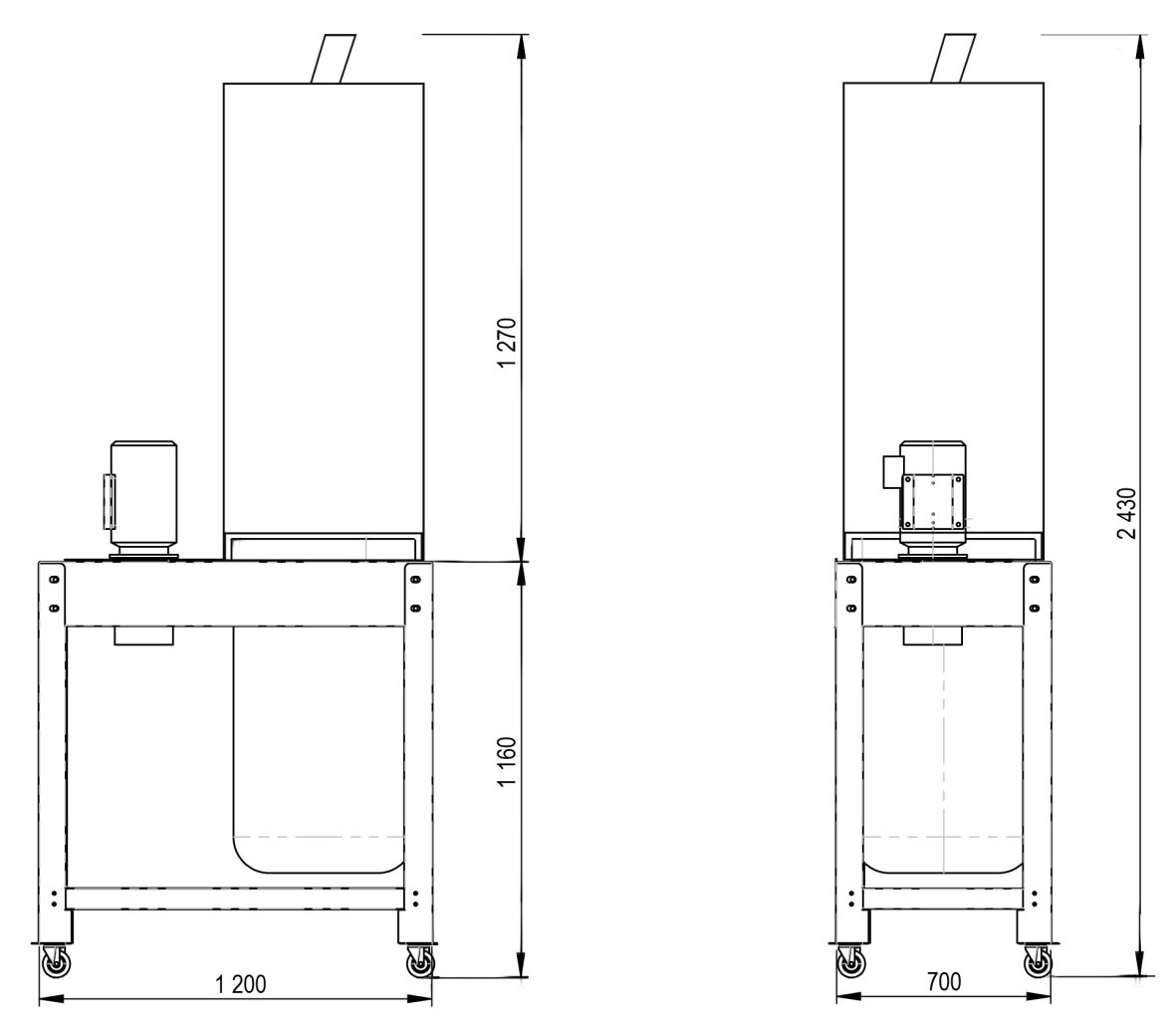

    Length

    1,200 mm

    Width

    700 mm

    Height

    2,430 mm

    Weight

    111 kg
