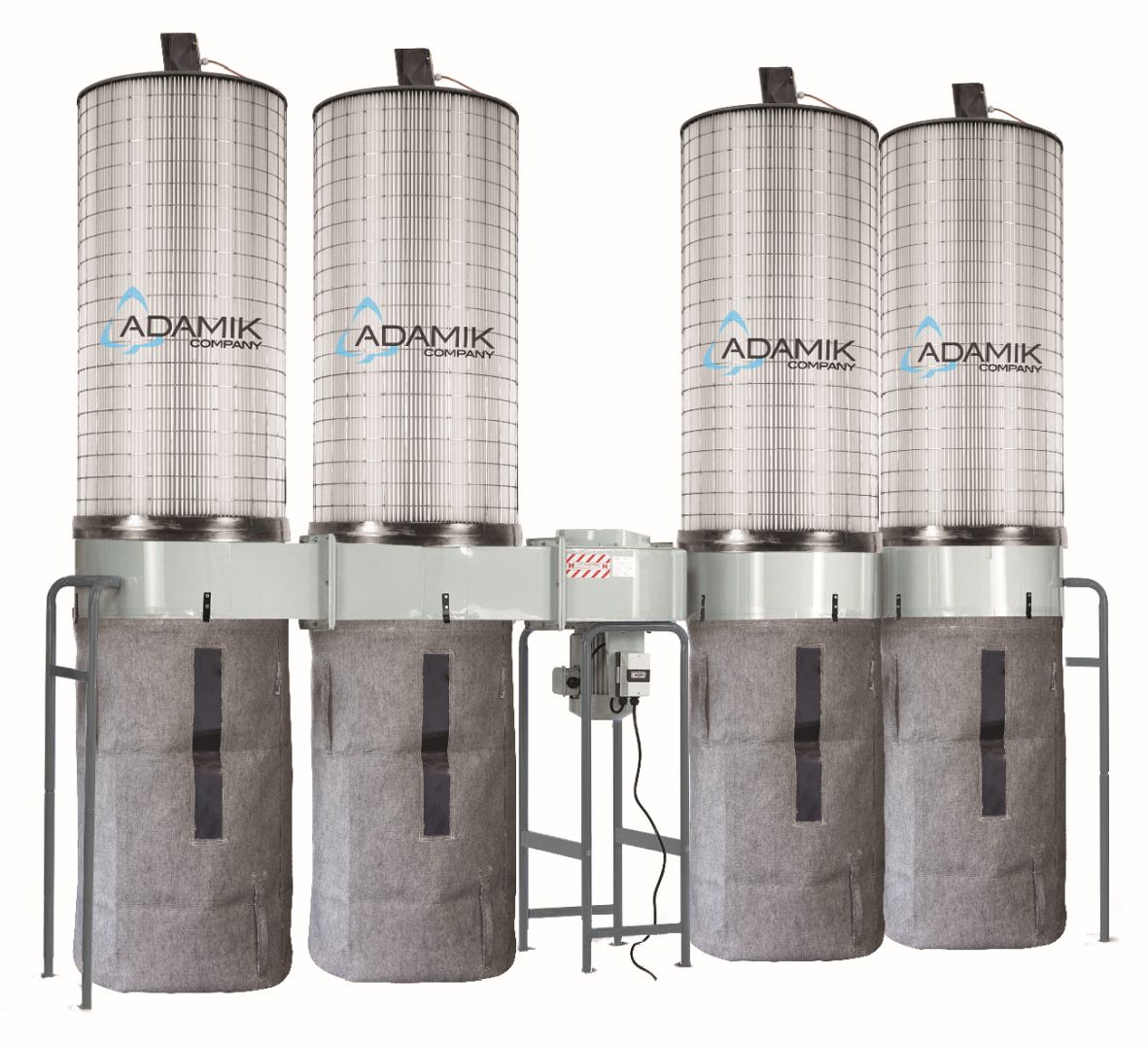

ADAMIK FT 504 VPEAM Dust Collector

5.258  excluding VAT
6.362,18  with VAT

Availability: On order

Inquiry to the seller

Inquiry to the seller

    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    SKU: FT504VPEAM Categories: ,
    Description

    The ADAMIK FT 504 VPEAM dust collector is equipped with antistatic polyester filters with cleaning using an electric motor and is intended for extracting fine non-explosive dust, for machines processing plasterboard, cement-bonded particle boards and similar building materials. The undisputed advantage is the large filtration area and the large volume of waste bags. It is also suitable for extracting CNC machines, wide belt grinders, jigsaws, four-sided saws and as a central workshop extraction unit – where an extended filtration area is required.

    • A metal rotor forms the basis of its quality construction.
    • A patented clamp system makes it easy to attach bags.
    • Antistatic polyester filters with cleaning using an electric motor.
    • Textile waste bags with an inspection window and loops for easier handling, which can be used repeatedly.
    • The machine can also be equipped with an external automatic start system.

    The price of the device does not include the PEAM filters control.



    Additional information
    Type

    FT 504 VPEAM

    Power

    3.75 kW

    Voltage

    400 V

    Extraction capacity (max)

    8,900 m3/h

    Underpressure (max)

    1,900 Pa

    Filtration area

    48 m2

    Waste bag volume

    1,200 l

    Connection to hose

    300 mm

    Circle diameter

    610 mm

    Noise level

    82 dB

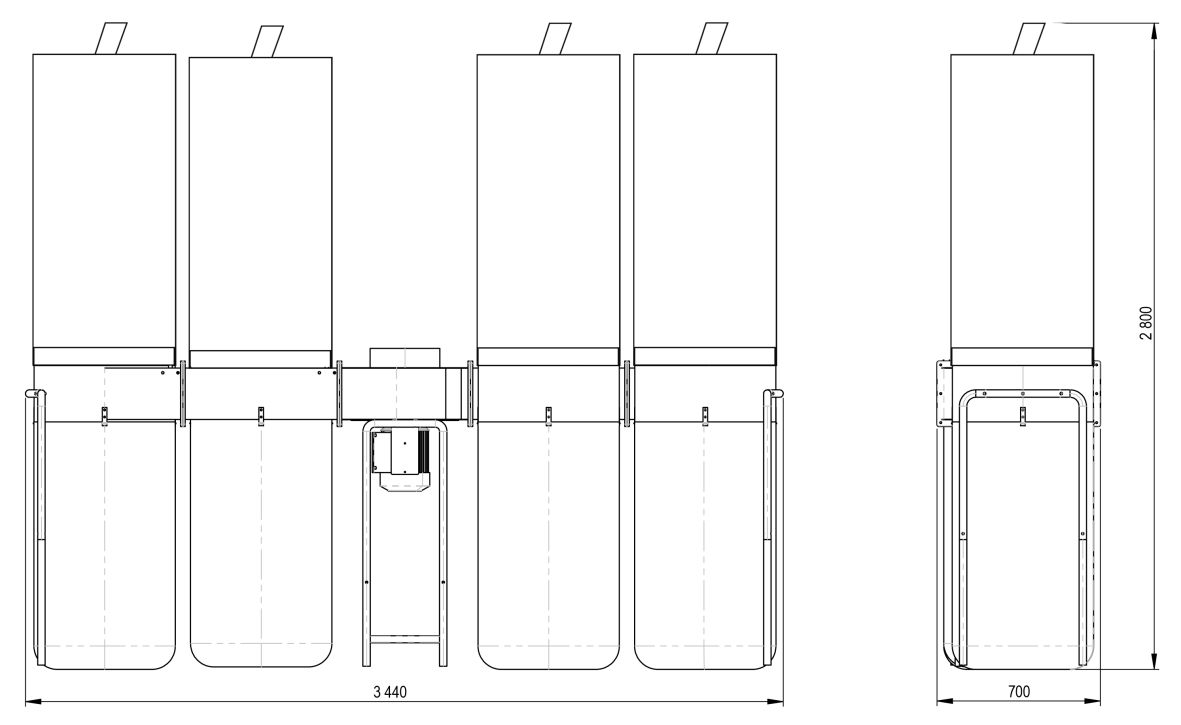

    Length

    3,440 mm

    Width

    700 mm

    Height

    2,800 mm

    Weight

    218 kg
