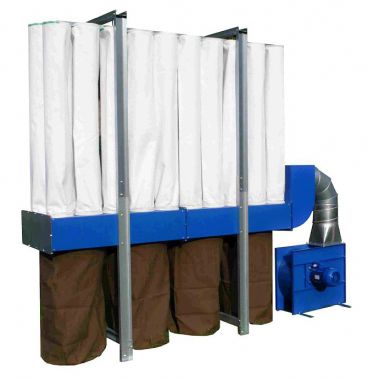

Filter unit ADAMIK FT 630 3 kW A

The ADAMIK FT 630 A extraction and filtration unit with automatic filter regeneration and a VAN 828 3 kW fan and a large filtration area is designed as a central extraction system for larger workshops. It is also very well suited for large-format saws and CNC machines. The machine’s large filtration area means more stable performance and lower dustiness, and the advantage is also a longer filter life.

The integrated filter cleaning system via a motor shaker allows the maximum performance of the entire extraction and filtration system to be maintained.

This is a high-quality design of the filter unit with a stand-alone fan. The innovative design of the fan has achieved an excellent ratio between extraction capacity and underpressure while using a low-energy motor and maintaining a low noise level. Underpressure is necessary for high-quality extraction of material from machines located at a distance of more than 10 m from the fan itself. However, this parameter is often underestimated.

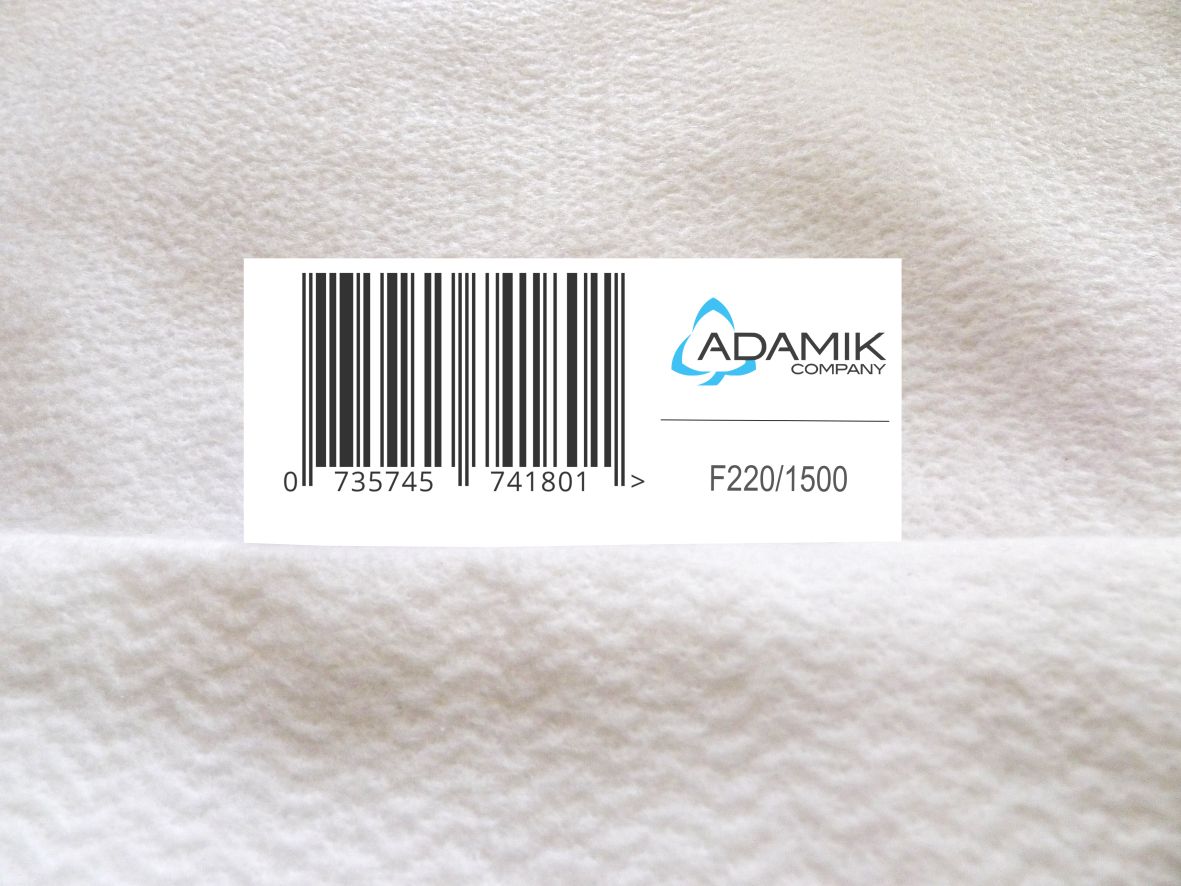

The machine is equipped with antistatic polyester filters as well as textile waste bags with loops for easier handling, which can be used repeatedly.

The filter unit does not include an electrical switchboard, which is always custom-made for a specific operation.

Note: If the price is not listed for the goods, the reason is that accurate pricing requires a more detailed specification of the client’s requirements, the materials being processed, the working environment, etc. In this case, please request a price quote and an ADAMIK sales and technical representative will contact you, who, after obtaining all the necessary information, will offer you the best possible solution for your operation.

OPTIONAL ACCESSORIES AND SERVICES

• Piping system – The piping system of the extraction device is one of the basic elements for the correct function of the extraction unit. We dimension the piping based on the required extraction capacity based on the total number of machines and their maximum concurrent operation. The piping system is designed in a smooth pipe and its individual elements are designed with the aim of minimizing air flow losses.
• Switchboards and automatic starting system – We have switchboards ready for individual machines in several variants or they are custom-made depending on requirements, for example for automatic machine starting or controlling pneumatic shutters.
• Manual shutters – To optimize extraction performance when not using all machines at the same time.
• Pneumatic shutters – For greater operator comfort and work optimization, we implement pneumatic shutters that usually work in parallel with the automatic starting system of the extraction unit.
• Piping system including installation – If you choose the turnkey implementation option, our installation team will be ready to install and commission everything at your location.
